With the advent of CNC controls, machine tool builders have recognized the advantage of replacing single point dressers with precision dressing discs.

The development of ceramic and superabrasive grinding wheels (both CBN and Diamond) has created the need for Clipper Diamond Discs.

As a pioneer in high precision Reverse Plated and Sintered Diamond Roll dressing since 1955, Clipper Diamond Tool has led the way in offering the latest in technology.  We offer a broad line of Dressing Discs made in four series:

The advantages of CDD's are:

Accuracy Surface Finish -   Improved because of greater diamond contact.

Life -    Considerably longer than single point tools.

Shorter Dressing Cycles -    Discs are more rugged than dressing tools.

CDD

Series PCD

High precision.

Sharp included angles (20* min).

Sharp radii (.1mm/.004" min).

Can be relapped multiple times.

CDD

Series NDS

High precision.

Wide range of profiles.

Can be relapped.

CDD

Series NDP

Medium precision.

Wide range of profiles.



Low cost but shorter life.

Dresses wheel aggressively.

Undamaged blanks can be relapped.

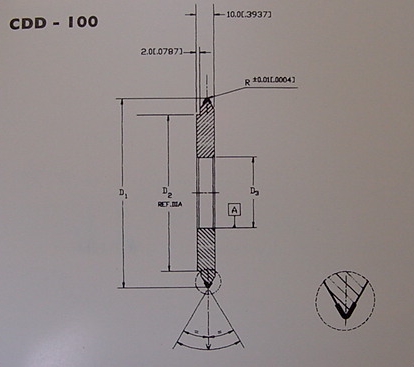

CDD - 100

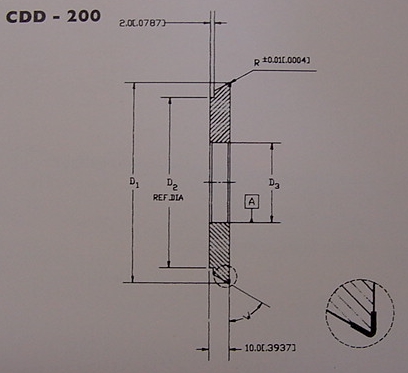

CDD - 200

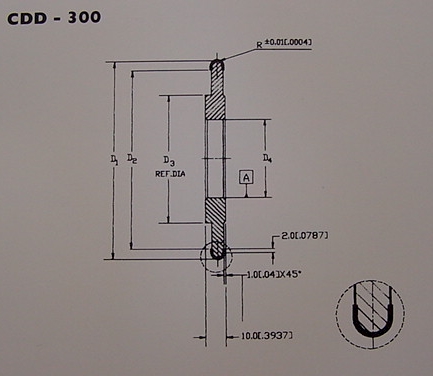

CDD - 300

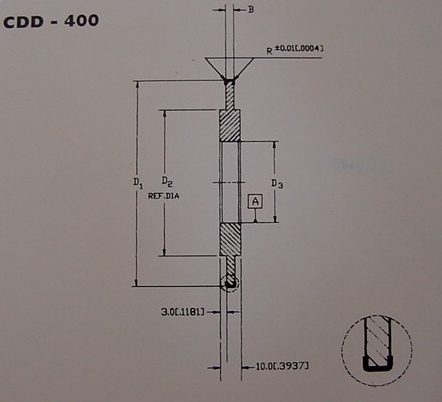

CDD - 400

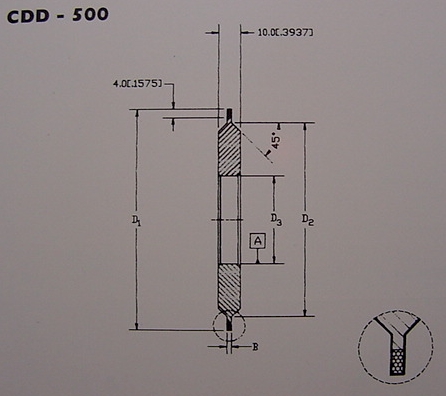

CDD- 500

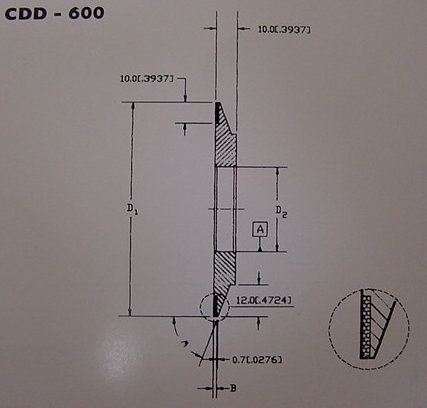

CDD - 600
